"Advanced 250m Long-Range IR Beam Break Detector: Your Invisible Security Barrier"
"Advanced 250m Long-Range IR Beam Break Detector: Your Invisible Security Barrier"
Couldn't load pickup availability
Description:
Elevate your security system with our cutting-edge 250m Long-Range IR Beam Break Detector, the ultimate solution for safeguarding your perimeter. Utilizing the latest in Active Infrared (IR) technology, this sophisticated device creates an invisible barrier that detects any intrusion attempts with unmatched precision. Its long detection range, combined with affordability and superior quality, makes it a standout choice for enhancing your security measures.
Designed to integrate seamlessly with various systems, this photoelectric beam detector features both Normally Open (N.O.) and Normally Closed (N.C.) alarm outputs for reliable wired connections. It's the perfect addition to your intrusion alarm system, access control, IP surveillance, and home automation systems, offering a high level of protection without the complexity of installation.
Discover the peace of mind that comes with having an invisible, long-range shield around your property. Whether you're securing a residential, commercial, or industrial space, our IR Beam Break Detector provides the advanced security you need to deter unauthorized access effectively.

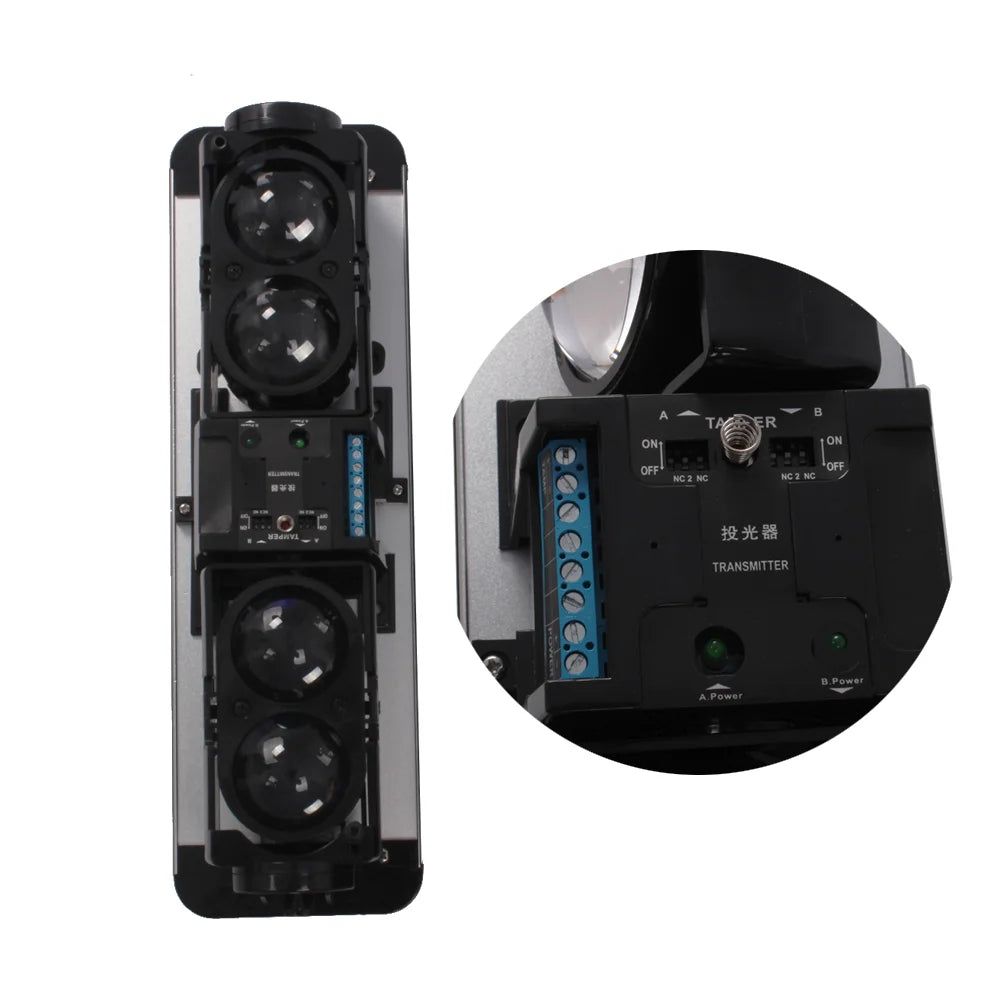

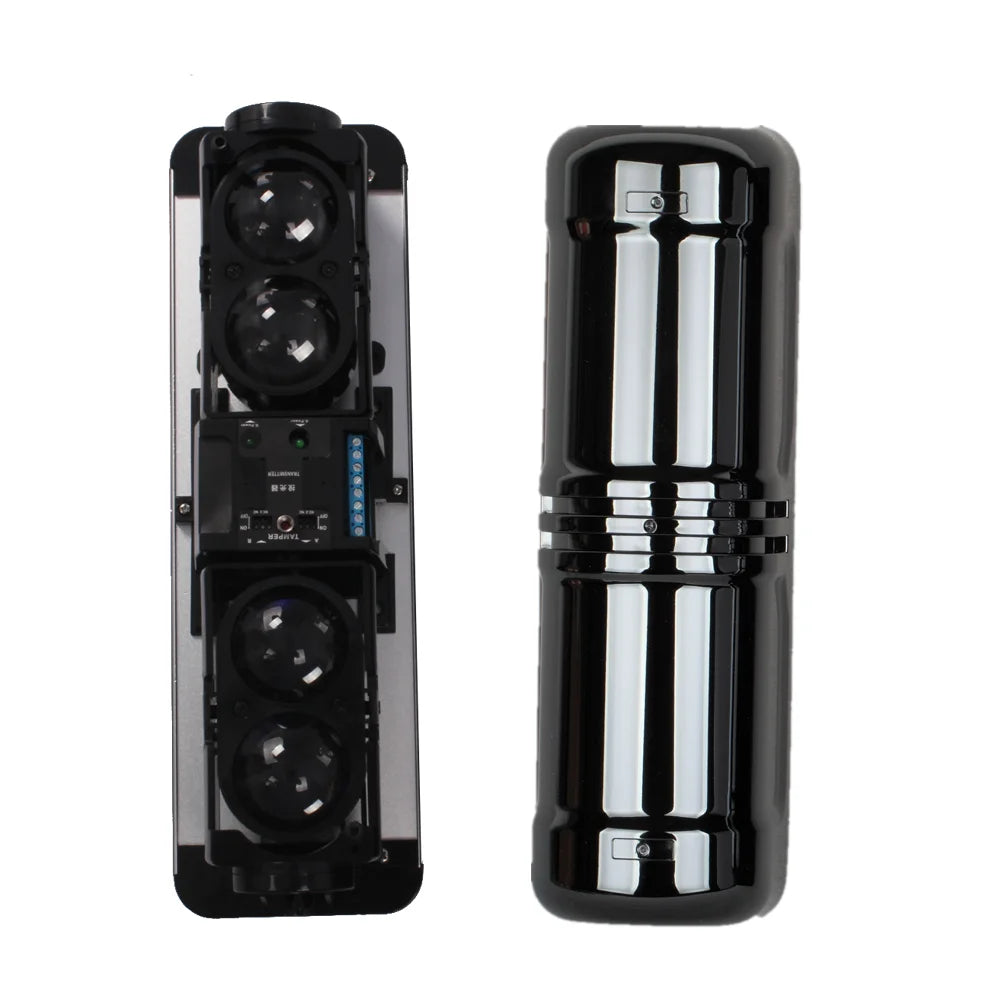

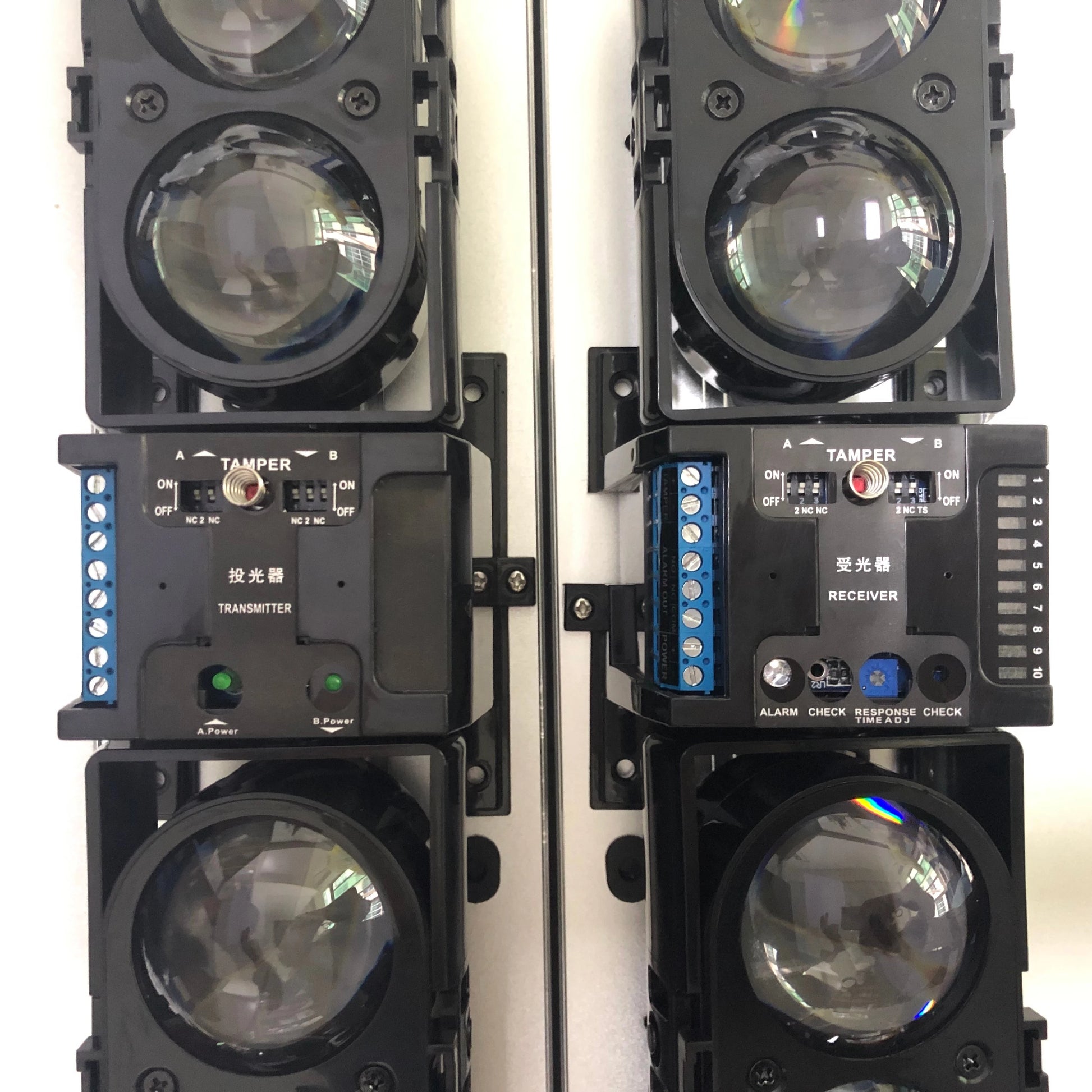

Structure
Features
1. 4 beams active infrared detector: can reduce the false alarms that are caused by bird, pet leaf...etc.
2. Adopt digital DIP technology, frequency, sensitivity, indicator and operation power can be adjusted through DIP switches.
3. Special-purpose DSP chip, patent multidimensional fault-tolerant, true detection alarm technology.
4. NC/NO relay outputs, compatible with other brand alarm systems like Honeywell, Bosch, Paradox, DSC, GE Alef, HONEYWELL etc.
5. Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system.
6. AGC circuit: when faced with fog or inclement weather,t he detector sensitivity will increase automatically.
7. Fully seal structure, with rain cover design, C relay output.
8. External Protection: Protection from rain, dust & insects.
9. Sniper viewfinder with x2 magnification
10. Alignment angle: Horizontal ±90° / vertical ±10°.
Parameters
|

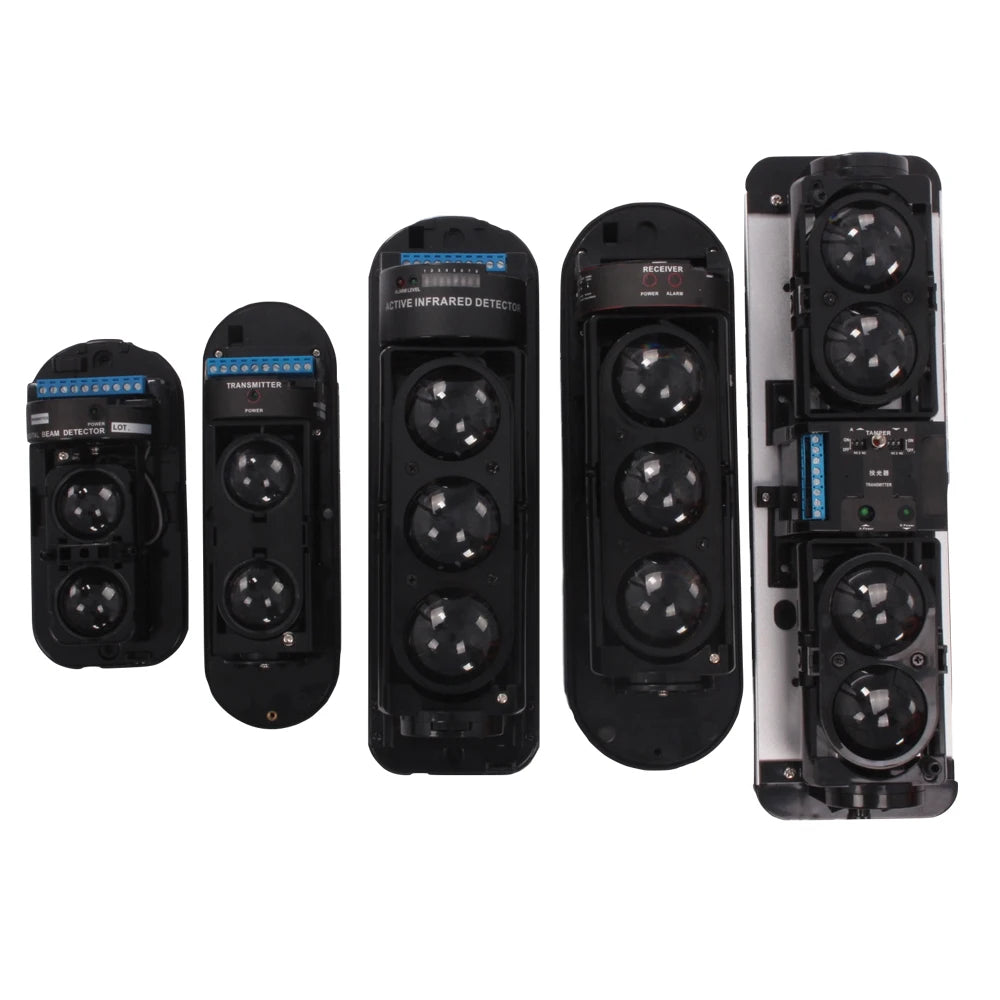

Model |
ABH-50L |
ABH-100L |
ABH-150L |
ABH-200L |
ABH-250L |
|
|
Detection Range |
Outdoor |
50m |
100m |
150m |
200m |
250m |
|
Indoor |
150m |
300m |
450m |
600m |
750m |
|
|
Number of beams |
4 beams |
|||||
|
Beam characteristics |
Pulsed infrared |
|||||
|
Viewfinder |
Removable |
|||||
|
Alignment level |
10 alignment LEDs |
|||||
|
Detection Method |
Simultaneous interruption of 4 infrared beams or a group of 2 infrared beams |
|||||
|
Interruption Time |
50~700m/sec (selectable) |
|||||
|
Power Supply |
DC 10~24V; AC 10~18V |
|||||
|
Current Consumption |
95mA max |
100mA max |
100mA max |
100mA max |
105mA max |
|
|
LED |
Red LED Alarm(receiver), Digtal LED Display |
|||||
|
Alarm Output |
Form C relay (DC30V/0.5A max) |
|||||
|
Alarm period |
2sec(±1) Nominal |
|||||
|
Tamper Switch |
NC opens when cover is removed |
|||||
|
Operating Temperature |
-25℃ to +55℃ |
|||||
|
Environment Humidity |
95% max |
|||||
|
Alignment Angle |
Horizontal 180°(±90°), Vertical 20°(±10°) |
|||||
|
Mounting |
Wall or Pole |
|||||
|
Protection Degree |
IP65 |
|||||
|
Material |
PC engineering plastic+Aluminum alloy |
|||||
|
Dimension (L*W*H) |
340*110*103mm |
|||||
|
Weight (Transimtter and Receiver) |
2730g |
|||||
|

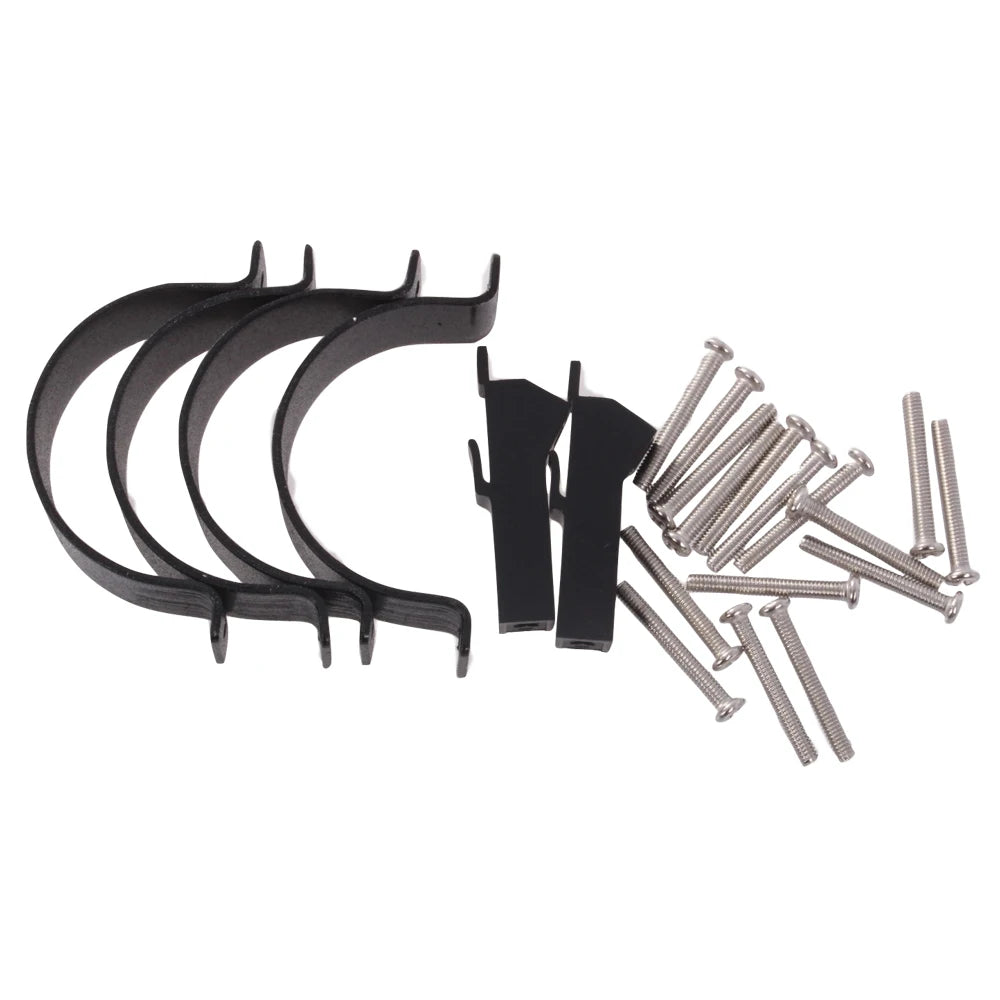

Attachments |
U bracket |
4pcs, 70.4*37.5*21.5mm, δ=1.5mm, stainless steel |
||||
| Pole mounting srew |
16pcs, PM4*30mm |
|||||
| Installation manual | 1 | |||||
|
Spiral Terminal Dedew and Defrost Method |
Heaters(need to purchase separately) | |||||
| Note: When environment termperature lower than -20℃, please use heaters to ensure normal working. Heater is non-polarized. | ||||||
