"Fortress Shield: The Ultimate 100-Meter Quad-Beam Infrared Barrier – Your All-Weather Guardian"
"Fortress Shield: The Ultimate 100-Meter Quad-Beam Infrared Barrier – Your All-Weather Guardian"
Couldn't load pickup availability
Product parameters:

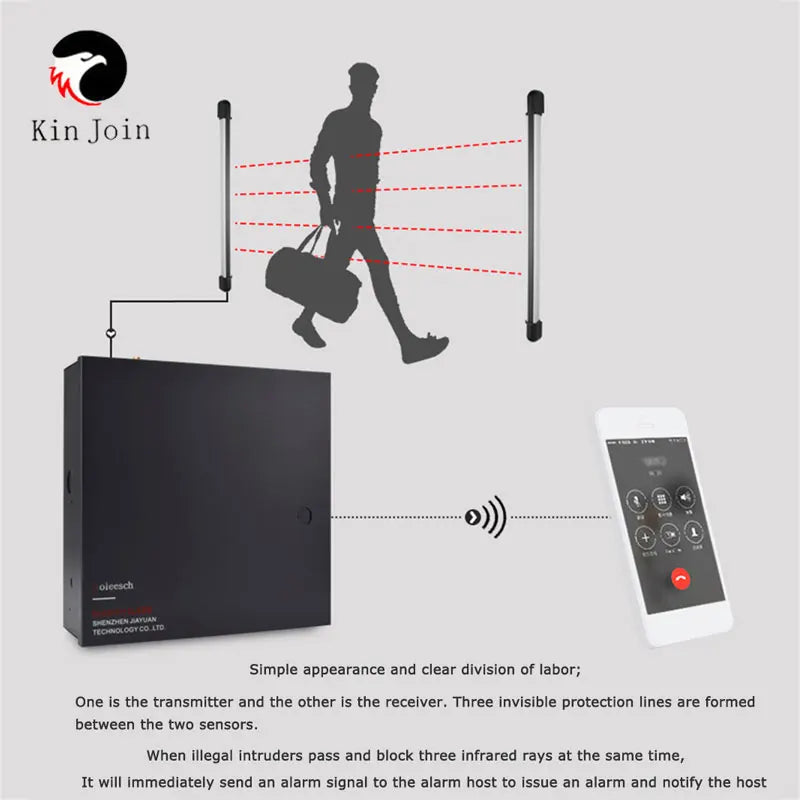

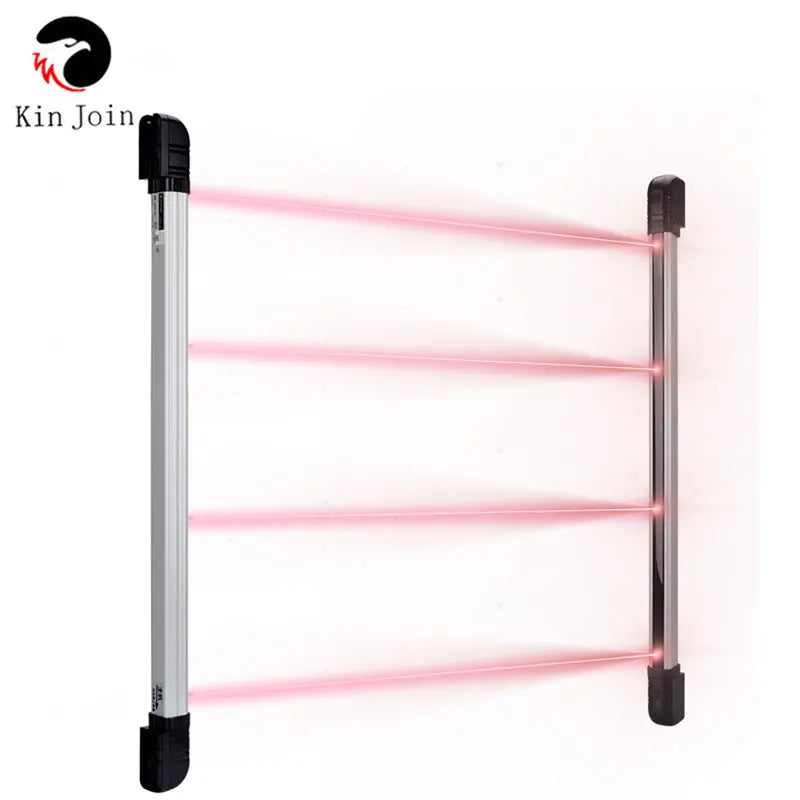

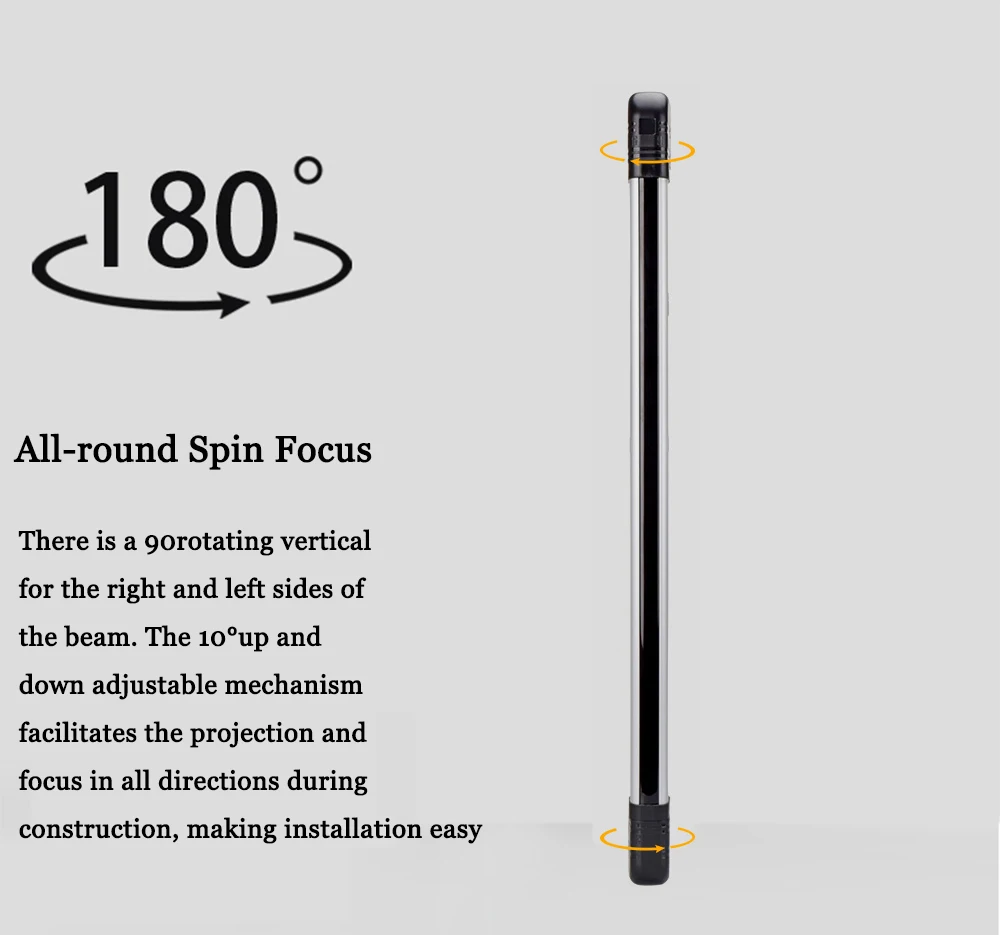

Outdoor detection range: 100m Number of beams: 4 Size: Height 75CM*Width 3.2cm Beam frequency: 4 frequency conversion Detection method: interrupt the adjacent two beams to alarm Induction speed: 50ms Projector working current (at DC12V): ≤100MA Receiver working current (when DC12V): ≤60MA Optical adjustment angle (horizontal/vertical): horizontal: 180*(±90°)/vertical: 20°(±10°) Alarm output mode: 1C relay contact output NO or NC Material: PC engineering plastic + aluminum alloy shell Other additional functions: light receiving indicator, OK indicator, test terminal Power supply voltage: DC12-24V Working temperature: -25°C- +55°C Working humidity: ≤95% Alarm trigger time: 50ms Alarm duration: ±1S Anti-tamper output mode: N.C normally closed Buzzer prompt: Yes Anti-white light level: 6500LVX Shell protection grade: IP65
![](https://ae01.alicdn.com/kf/H4ec94b51ee2b4d1d9bdd9f40a0a7a29fi.jpg)
![](https://ae01.alicdn.com/kf/Hfdeacda635414b76a774c7fd732cdfe2d.jpg)
![](https://ae01.alicdn.com/kf/H2360911181f749678066a0daef57f2238.jpg)
![](https://ae01.alicdn.com/kf/H7b134951553f43a6ac1cc438b14ba42dF.jpg)
![](https://ae01.alicdn.com/kf/Hcaf0e72f93334da5949c40f7f4df160d4.jpg)
![](https://ae01.alicdn.com/kf/H6a4172e049a34ba681b634da3690f74dm.jpg)
![](https://ae01.alicdn.com/kf/Hc1aed75af13740848b3c4d44f1f93b5eQ.jpg)
![](https://ae01.alicdn.com/kf/H02cd33029560451ea3a0b59ea83efd3b0.jpg)
![](https://ae01.alicdn.com/kf/H98a6b9d5bac64534b6ea844ddbf71d7eW.jpg)
![](https://ae01.alicdn.com/kf/Hf486f922496e43f6a2198462efea24ddK.jpg)
![](https://ae01.alicdn.com/kf/H0a520bdcf5d94973a451baddb2b07daeQ.jpg)
![](https://ae01.alicdn.com/kf/H78c6c2b3ccc34d0a98edd78390a24989v.jpg)
![](https://ae01.alicdn.com/kf/H2d0c5942e3214c3b9ab454639a9dabf9e.jpg)
